GliderThrow & GliderThrow Quad
GliderThrow is a digital Angle/Throw meter and ... Differentials!
This small device can measure the deflections in degrees / millimeters with a resolution of 0.1 degrees and can measure the differential when working together with a second unit since GliderThrow is a system that comprises two sensors, one for each wing or surface of your airplane.
Using a dual system very much simplifies the throw setting of your model by having a direct view of both control surfaces at the same time.
GliderThrow has been initially conceived for setting the aileron and flap throws of a model glider but you will find that it can be used on most every airplane and for a variety of applications as Measuring a dihedral angle of a wing, Measuring Model Airplane Incidence angle , etc.
The data can be viewed through any web browser on a smartphone, Android or iOS, PC or MAC.
GliderThrow does not need any app to work. When turning on both units, search with your smartphone or PC for WiFi Ap called "GliderThrow" and connect. Once connected, you will access the GliderThrow site trough your web browser.

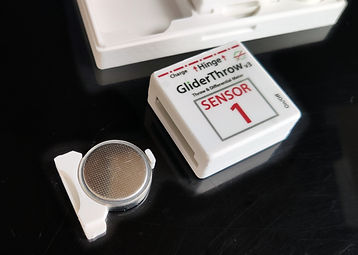

The device is held in place by a powerful neodymium magnetic peg combined with a non-slip surface.

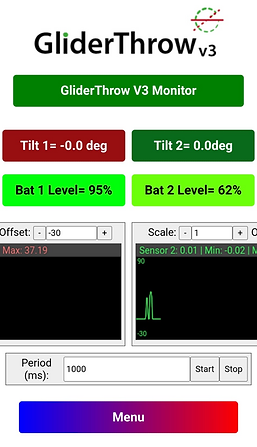

Navigating through the menus, you can easily visualize the surfaces travel, both degrees and millimeters, as well as configure the surface chord.
Introducing our new GliderThrow Quad. A new pair of sensors 3 and 4 of our digital Angle/Throw meter and differentials that, as well as working by themselves alone, work together with the current units 1 and 2 for those users who want to measure the throw of up to 4 control surfaces at the same time and their differentials. Available as a special order.
GliderThrow can help you in a variety of applications as measuring a dihedral angle of a wing, measuring model airplane incidence angle , etc.
Even the smallest F3K models can take advantage of using GliderThrow to measure the correct throws.
- Single Device dimensions Height x Width x Depth: 17x37x37mm.
- Single unit Weight: 19g
- Single unit Weight with Magnetic Peg: 23g
- Resolution: 0,1 degrees. 0,1 millimeters
- Precision: Better than 0,3 degrees
- Power: 150mAh Rechargable Lithium Battery (About 2 hours of continous operation)
- Charging : Micro USB Cable
- Charging Time: About 1 Hour
Download the manual here.
GliderThrow Gallerie here
How to operate GliderThrow video below
